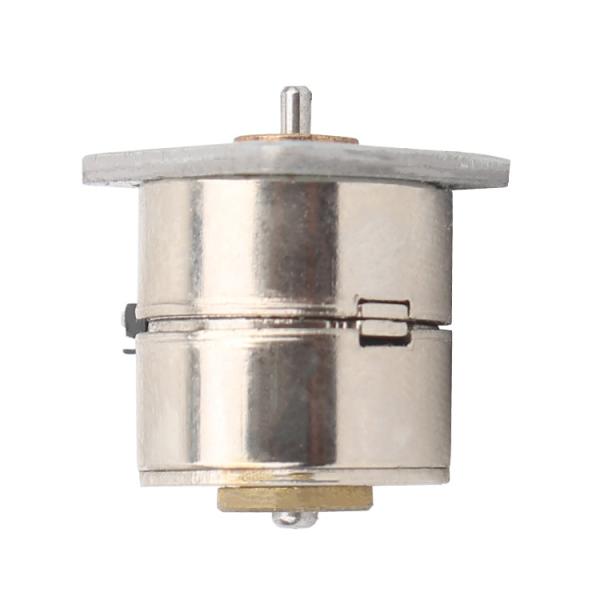

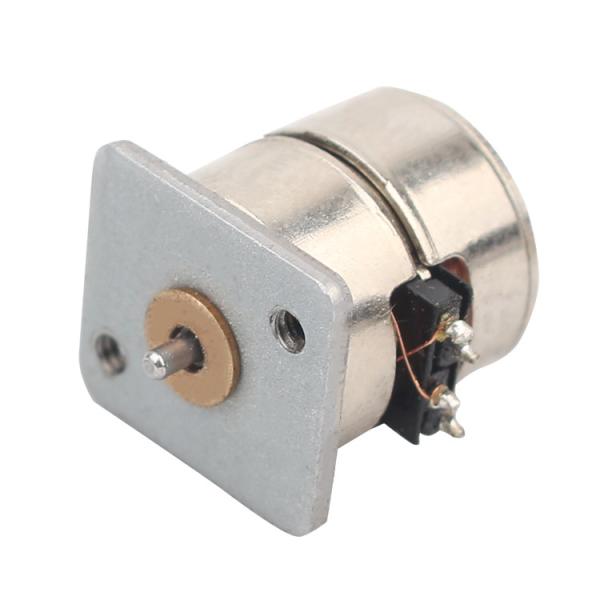

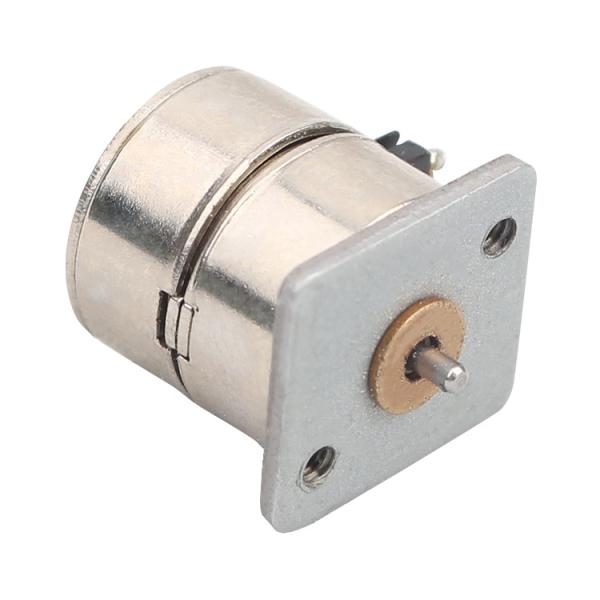

18 Degree 10mm Micro Stepper Motor / Long Life 2 Phase 5VDC for Door Locks 、Wearable device

Name: 18 Degree 10mm Micro Stepper Motor Long Life 2 Phase 5VDC for Door Locks Wearable device
Brand: VIC-TECH
Price: 2 USD

Quality 18 Degree 10mm Micro Stepper Motor / Long Life 2 Phase 5VDC for Door Locks 、Wearable device for sale

Brand Name : VIC-TECH

Model Number : VSM1055

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1Unit

Price : $2~$5/Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Step Angle(degrees) : 18 degree

Phase : 2

Voltage : 5.0 V

Resistance : 39 Ω±10%

Weight : 5 g

Rotation : CW/CCW

Type : Permanent Magnet

Contact Now

micro stepper motor 10mm Long life 2 phase pm stepper motor

Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements

10*9mm 10mm permanent magnet stepper motor, can be equipped with 10mm or 12mm gearbox
Compliance with EU Environment Standard
Stepper motor with gearbox,low consumption,low noise,high torque
Reduction ration:1:3;1:5;1:10;1:30;1:50;1:100;1:150;1:210;1:298;1:380
All parameters can be customized

18 Degree 10mm Micro Stepper Motor / Long Life 2 Phase 5VDC for Door Locks 、Wearable device

Mechanical Dimension:MM

18 Degree 10mm Micro Stepper Motor / Long Life 2 Phase 5VDC for Door Locks 、Wearable device

Technical Features

10*9mm 10mm permanent magnet stepper motor, can be equipped with 10mm or 12mm gearbox
Compliance with EU Environment Standard
Stepper motor with gearbox,low consumption,low noise,high torque
Reduction ration:1:3;1:5;1:10;1:30;1:50;1:100;1:150;1:210;1:298;1:380
All parameters can be customized

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Specifications

Product Name	10mm micro stepper motor
Model	VSM1055
Rated Voltage	5.0 V
Current Per Phase	130 mA /phase
Coil Resistance	39 Ω±7%
No. Of phase	2 Phases
Step Angle	18 degree
Excitation Method	2 Phase Excitation
Drive Mode	Bipolar Drive
Pull-In Torque	3.5 gf.cm ,(AT 500 pps)
Pull-Out Torque	13.0 gf.cm ,(AT 0 pps)
Max. Response Frequency	900 pps,
Max. Starting Frequency	1200 pps,
Insulation Class	Class E for Coils
Insulation Strength	100 V AC for One Second
Insulation Resistance	50.0 MΩ (DC 100 V)
Operating Temperature Range	-0~+55 ℃
Weight	4 g(Ref.)
OEM & ODM SERVICE	AVAILABLE

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

18 Degree 10mm Micro Stepper Motor / Long Life 2 Phase 5VDC for Door Locks 、Wearable device

Product Detail Presentation

18 Degree 10mm Micro Stepper Motor / Long Life 2 Phase 5VDC for Door Locks 、Wearable device
