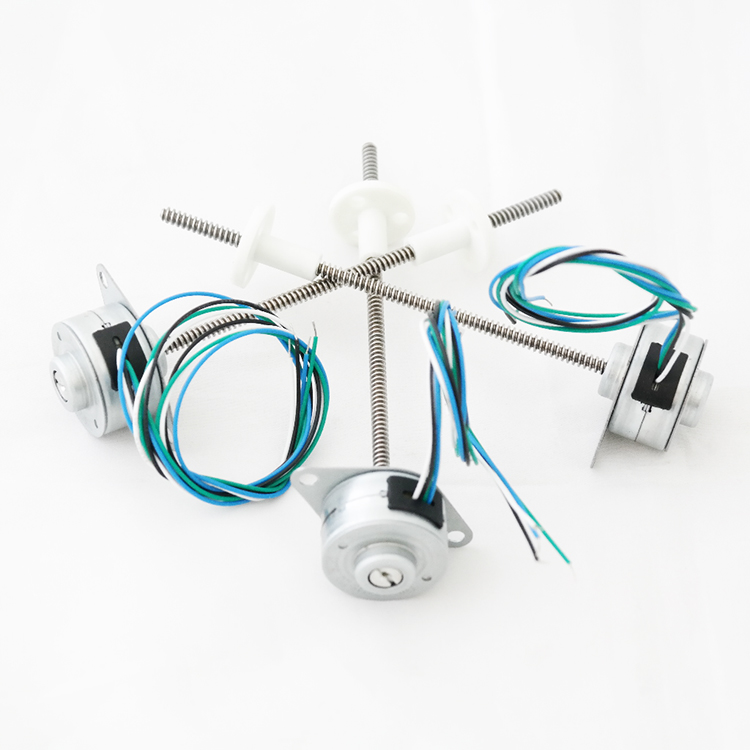

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw

Phase : 2

Torque : 75gf*cm

Type : Permanent Magnet

Model Number : 25BYT48-12Q

Brand Name : Vic-Tech

Place of Origin : Jiangsu, China

Current / Phase : 140 mA/phase

Nema Frame Size : 25mm

Voltage : 12 V DC, 12v

Warranty : Other

Certification : Rohs

lead pitch : 3.5mm

push force : 5N

MOQ : 1

Price : $12-28

Contact Now

25BYT48-12Q micro linear stepper motor high torque 2 phase stepper motor with lead screw

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw

Mechanical Dimension:MM

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw

Typical Applications

  • Medical Equipment

  • Automatic Control

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

25BYT48-12Q linear stepper motor

Model

 25BYT48-12Q
Excitation 2-2
Rated Voltage 12V
Phase 2
Step Angle 7.5 degree

Resistance

84Ω±10%
Current Per Phase 0.143A

Travel Per Step Avail

Holding Torque

150g.cm

Inductance Per Phase

48±20% (mH) At 1KHz(Ref)

After All Journey

98mm

Life

3000h MIN At 20℃ 100pps
Operating Temp Range -10℃~40℃
Storage Temp Range -30℃~80℃

Insulation Class

class E
Insulation Resistance >100MΩ MIN At DC 500V

lead wrie

UL1061 28#
Weight 42g

OEM & ODM Srvice

Available

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
